smoltorrent

Overview

smoltorrent is an educational project for learning distributed systems concepts hands-on. It shards .safetensors ML model checkpoints across a cluster of worker nodes over raw TCP, coordinated from a central machine. Each shard is stored on two workers (replication factor 2), so any single node failure loses no data. Transfers use os.sendfile + mmap end-to-end — tensor bytes move from disk to socket to disk entirely at the kernel level, so the coordinator's RAM usage stays flat regardless of checkpoint size. Workers are discovered automatically via mDNS - no hardcoded IPs. On macOS, peer-to-peer AirDrop / AWDL discovery runs in parallel for router-free Mac-to-Mac networking. A watcher daemon monitors your checkpoint directory and pushes new files automatically - no manual intervention needed.

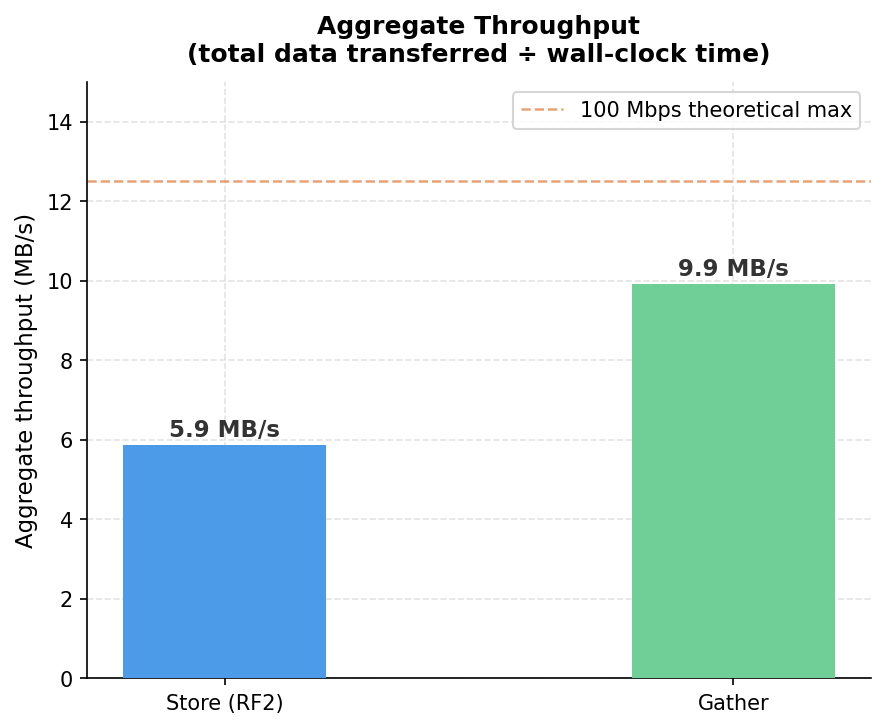

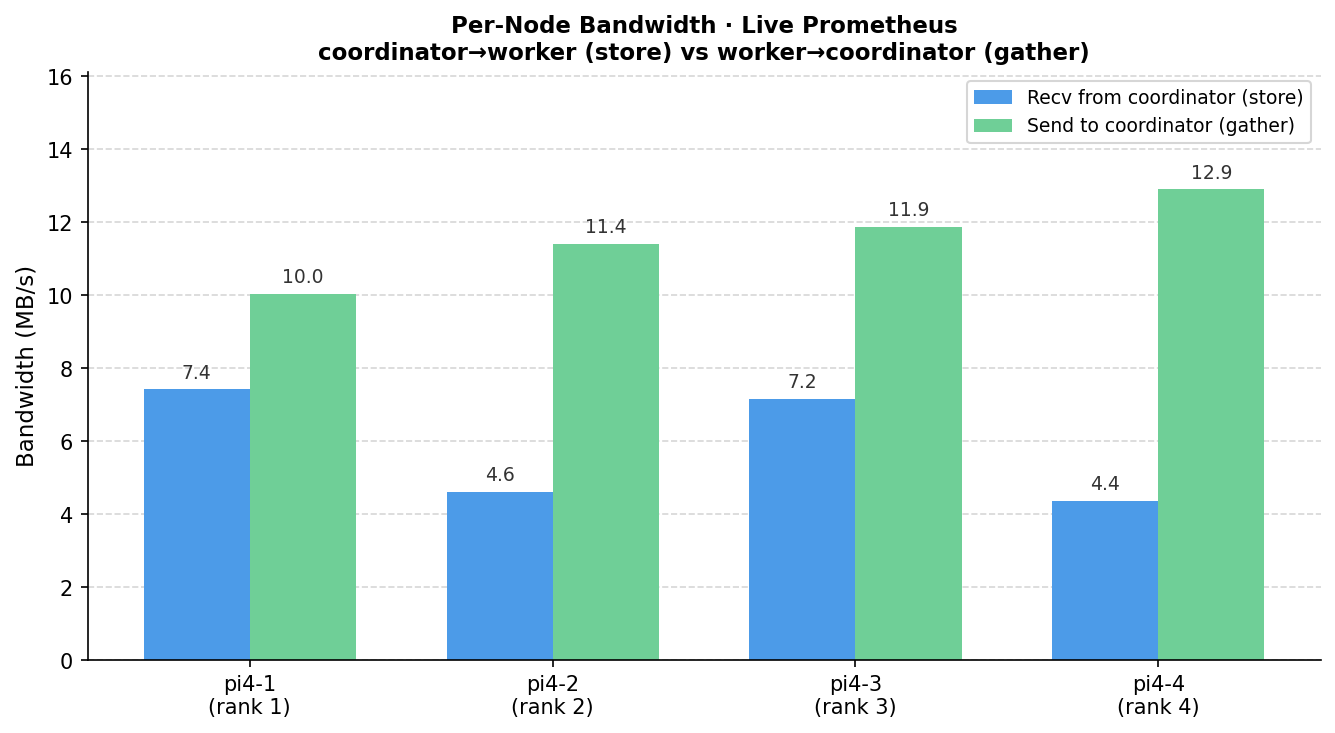

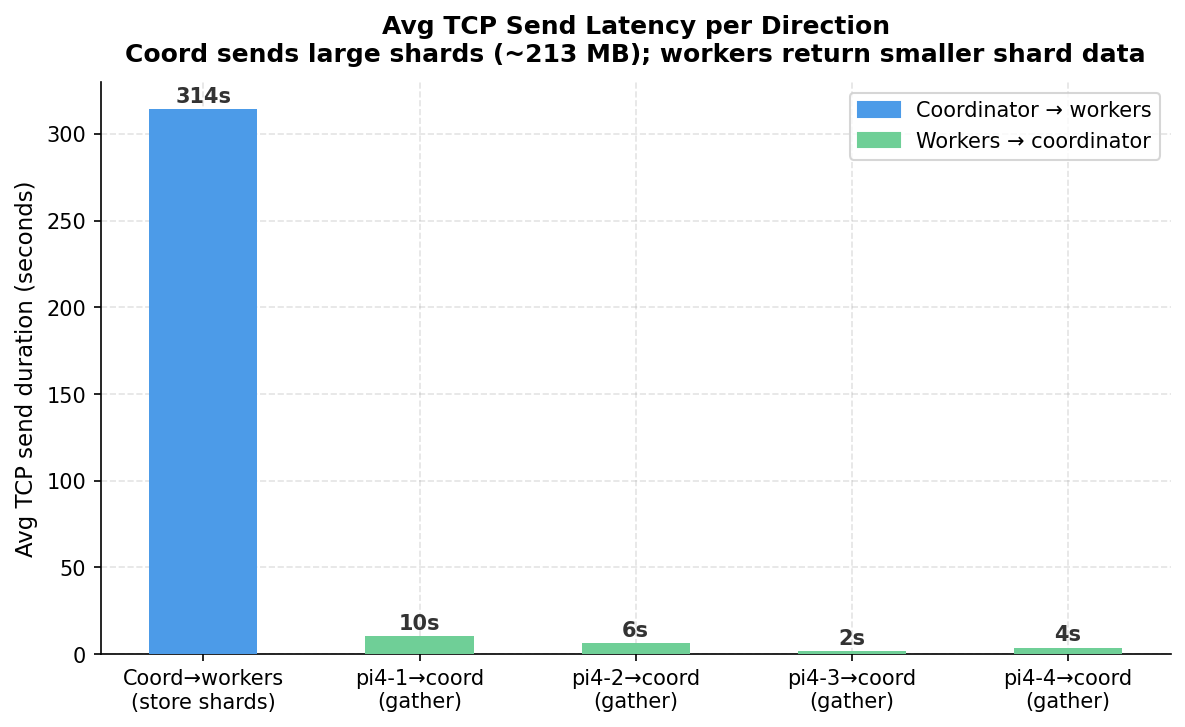

Performance Results

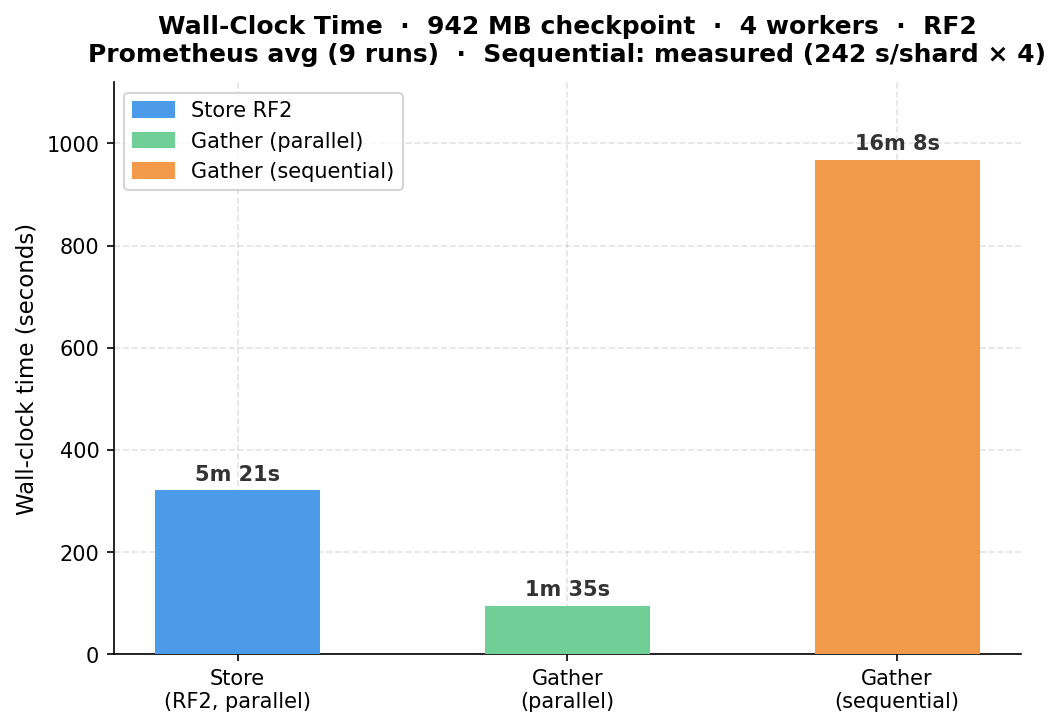

4 workers · RF2 replication · ~100 Mbps Ethernet · 942 MB checkpoint. Wall-clock times from Prometheus (9 runs avg). Sequential baseline measured directly (242 s/shard × 4).

Key Features

• Zero-copy transfer - store and gather use os.sendfile + mmap; tensor bytes move coordinator↔Pi entirely at the kernel level. Python never buffers the checkpoint in RAM — master RSS stays flat even on multi-GB files.
• Replication factor 2 - each shard lives on two nodes; single-node failure loses no data, gather falls back to replica automatically.
• Per-shard checksum retry - gather verifies each shard's SHA-256 inline after transfer; on mismatch it falls through to the next replica immediately. Shards that exhaust all replicas go into a retry queue with exponential backoff — same pattern as store, so both paths behave consistently.
• SHA-256 checksums - every shard has a .checksum sidecar; corruption detected at store and re-verified at gather.
• Watcher daemon - inotify/watchdog triggers on new files; pending loop handles files still being written.
• mDNS discovery - zero-config worker discovery via Zeroconf on all platforms; AirDrop/AWDL on macOS for Mac-to-Mac.
• Auto-start - macOS LaunchDaemons bring the cluster up after coordinator reboot; systemd service restarts workers after node reboot.
• Monitoring - Prometheus + Grafana + Loki in Docker on the coordinator; no SSH required. Workers expose metrics on 9200+rank. Alerts fire on Telegram — bandwidth alerts only trigger during active transfers, not during idle cool-down.
• Fully config-driven - all topology in configs/config.yaml; no IPs hardcoded anywhere.

Watcher & Discovery

Watcher

Monitors ckpt_root for new .safetensors files. On each trigger: file_sync → checksum_sync (startup only) → transfer → crosscheck. Files detected while still being written go to a pending list and are re-evaluated every 10 s.

Discovery

Workers advertise themselves over mDNS (_smoltorrent._tcp.local.) on startup. The coordinator scans the network and finds all workers without any hardcoded IPs - useful for initial setup or when DHCP reassigns addresses. On macOS, AirDrop/AWDL discovery runs in parallel for Mac-to-Mac scenarios.

Pipeline Workflow

End-to-end flow for store (left) and gather (right). The watcher daemon auto-triggers store on new checkpoint files; gather is invoked via CLI or API. Dashed arrows indicate optional or fallback paths.

Watcher Boot Sequence

What happens when the cluster starts. Left lane: Mac coordinator. Right lane: Pi workers. Startup-only path (checksum_sync) shown in amber; loop-back on gaps in red.

Cluster Architecture

Coordinator (any macOS / Linux machine)
  ├── FastAPI server   backend/api.py          ← /store-shard, /gather-shards, /discover
  ├── Watcher daemon   watcher/watch.py         ← auto-syncs new checkpoints
  ├── Discovery        discovery/               ← mDNS + AirDrop device discovery
  └── Workers × N      algorithms/SyncPS/worker.py  ← TCP listener on each worker node

Replication (factor 2):
  Shard 0  →  Worker 1 (primary)  +  Worker 2 (replica)
  Shard 1  →  Worker 2 (primary)  +  Worker 3 (replica)
  Shard 2  →  Worker 3 (primary)  +  Worker 4 (replica)
  Shard 3  →  Worker 4 (primary)  +  Worker 1 (replica)

Transfer protocol (zero-copy):
  Store: coordinator reads shard range from checkpoint → os.sendfile → Pi writes to shard_N.safetensors via mmap
  Gather: Pi serves raw tensor bytes → coordinator writes directly into pre-allocated merged file via mmap
  Python never holds the checkpoint in RAM on either end — RSS stays flat regardless of file size.

Network: LAN, VPN, or any TCP-reachable topology (~100 Mbps tested over Tailscale)

Usage

grove (recommended) - no SSH config needed. Workers discover the master over mDNS and self-register. grove_launch.sh starts the API + watcher automatically once all workers have joined:

# Coordinator: advertise and wait for N workers to join
grove start -n 4

# Worker (each Pi or Mac on the same network): TUI - select master, Enter to join
grove join

# -- cluster is now up, API server at localhost:8000 --
grove store --ckpt-path /path/to/checkpoints/model.safetensors
grove gather --ckpt-path /path/to/checkpoints/model.safetensors

# Discover live workers (mDNS)
curl http://<master-ip>:8000/discover

Contributors / code changes - fill in configs/dev-config.yaml with your SSH aliases and Tailscale IPs, then:

bash scripts/launch.sh              # rsync code to all workers (skips configs/)

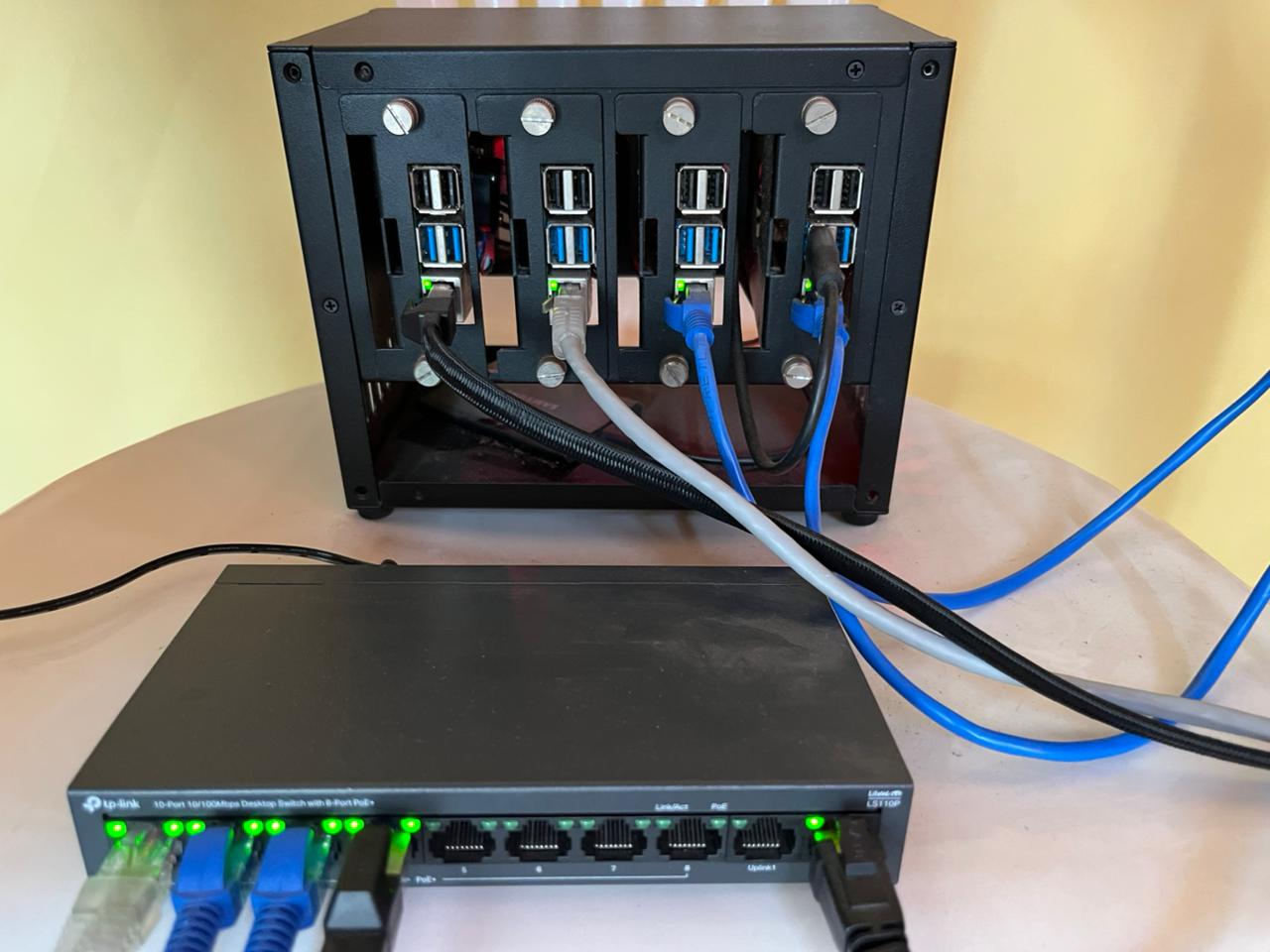

Tested On

Any macOS or Linux machine can act as coordinator or worker. This is the exact setup we developed and tested on:

Workers can be any Linux or macOS machine - not Pi-specific. Coordinator requires Apple Silicon for MLX tensor ops; workers are platform-agnostic (PyTorch only).

License

smoltorrent is released under the MIT License.
